In the fields of crushing medium and hard materials such as mining, construction, and metallurgy, single cylinder cone crushers have gradually replaced traditional multi cylinder cone crushers and become the mainstream equipment for medium and fine crushing operations due to their characteristics of "simplified structure, outstanding efficiency, and convenient operation and maintenance". Its core design revolves around the construction of a "single cylinder hydraulic drive", balancing crushing efficiency and operational stability through an integrated structure and intelligent control system, and adapting to diverse materials such as limestone, granite, and recycled aggregates from construction waste. This article will comprehensively analyze the technical value and practical advantages of single cylinder cone crushers from two aspects: core characteristics and prominent advantages, combined with practical application cases.

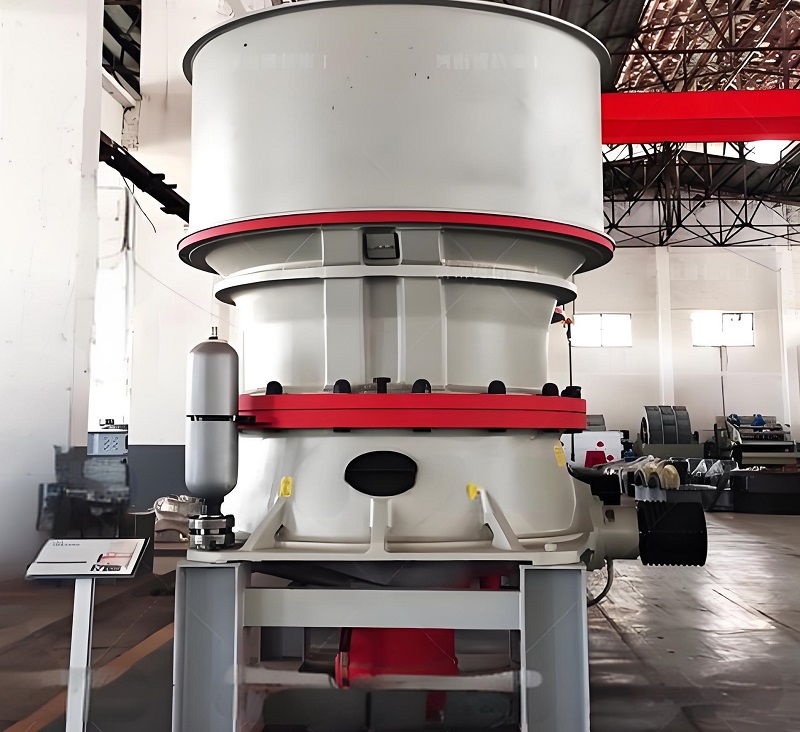

The core feature of a single cylinder cone crusher is the dual breakthrough of structural simplification and functional integration

The key difference between single cylinder cone crusher and traditional equipment lies in the structural innovation centered on the "single cylinder hydraulic system". Through component integration and design optimization, it achieves efficient collaboration of "crushing adjustment protection" functions, demonstrating unique technical characteristics.

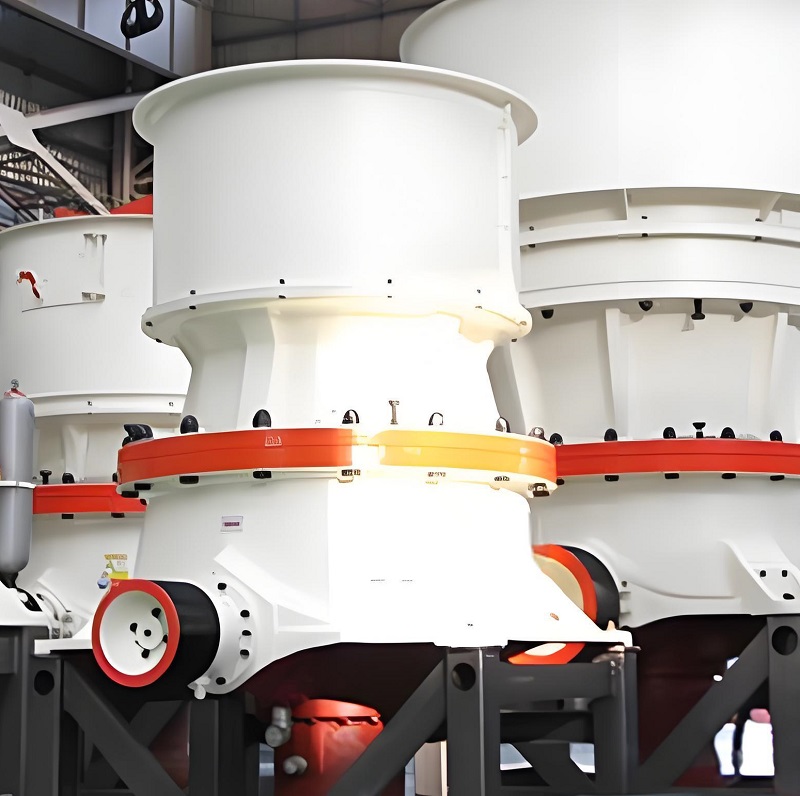

1. Single cylinder hydraulic drive: simplifies the structure and improves response speed

The single cylinder cone crusher adopts a bottom single cylinder hydraulic drive design, replacing the traditional multi cylinder split hydraulic system of the multi cylinder cone crusher. It integrates the dynamic cone support, discharge port adjustment, and overload protection functions into one hydraulic cylinder, reducing the structural components by more than 40%, the overall volume of the equipment by 30%, and the weight by 25%, significantly reducing installation space requirements and transportation costs.

From the perspective of working principle, the bottom oil cylinder pushes the moving cone up and down through hydraulic oil: when adjusting the discharge port, the piston rod of the oil cylinder rises or falls, driving the moving cone to approach or move away from the fixed cone, achieving stepless adjustment of the discharge port size (5-50mm), with an adjustment response time of ≤ 10 seconds, much faster than traditional multi cylinder equipment (30-60 seconds); When encountering overload (such as mixing with unbreakable foreign objects), the oil cylinder automatically releases pressure, the moving cone sinks to increase the discharge port, allowing the foreign objects to be discharged, and then automatically resets to avoid equipment jamming and damage. Data from a certain limestone mine project shows that after adopting a single cylinder cone crusher, the response time for overload protection has been reduced from 8 seconds for traditional equipment to 2 seconds, and the equipment blockage failure rate has decreased from 5 times per month to 0.5 times, effectively ensuring the continuous operation of the production line.

2. Integrated crushing chamber: adapted to multiple materials, improving crushing quality

The crushing chamber of the single cylinder cone crusher adopts a "laminated crushing+optimized chamber type" design. According to the material hardness and crushing requirements, three chamber types are provided: standard chamber, medium chamber, and short head chamber, which are suitable for the entire process operation from coarse crushing to fine crushing:

Standard cavity: suitable for processing materials with moderate hardness (such as limestone and sandstone), with a crushing ratio of 10-15 and a product particle size uniformity (pass rate) of over 90%;

Medium cavity: Suitable for materials with high hardness (such as granite and basalt), by deepening the cavity shape to extend the material residence time, ensuring sufficient crushing, and the needle like content in the product is ≤ 10%;

Short head cavity: used for fine crushing operations (such as processing recycled concrete aggregates), with a minimum discharge port of 5mm and a particle size deviation of ≤ ± 2mm, meeting the high standard requirements for building aggregates.

At the same time, the crushing chamber adopts the design of "high manganese steel ZGMn13 lining plate+tungsten carbide composite layer". The hardness of the lining plate reaches HRC50-55, and its wear resistance is three times that of ordinary carbon steel. When processing granite with a Mohs hardness of 7 or above, the service life of the lining plate can reach 8-12 months, which is 60% longer than the traditional multi cylinder equipment lining plate (5-8 months).

3. Intelligent control system: achieving unmanned and precise control

Modern single cylinder cone crushers are commonly equipped with PLC intelligent control systems and IoT modules, constructing a closed-loop control system of "perception decision execution", demonstrating strong intelligent characteristics:

Real time monitoring: By using current sensors, pressure sensors, and temperature sensors, parameters such as motor current (reflecting load conditions), hydraulic system pressure (discharge port status), bearing temperature (equipment health), etc. are collected in real time, with a data transmission frequency of once per second;

Automatic adjustment: When the feed rate fluctuates, the system automatically adjusts the oscillation frequency of the dynamic cone (800-1200 times/minute) and hydraulic pressure to ensure that the crushing load is stable at 80% -90% of the rated power, avoiding overload or underload; For example, when the feed rate suddenly increases, the system reduces the oscillation frequency, increases the discharge speed, and prevents blockage of the crushing chamber;

Remote operation and maintenance: The device operation data is uploaded to the cloud platform through the Internet of Things module, supporting remote monitoring through mobile apps or computers. Operation and maintenance personnel can view the device status in real time, diagnose faults remotely (fault recognition accuracy ≥ 95%), and even remotely adjust the size of the discharge port, achieving "unmanned" operation. After the application of a certain intelligent mining project, the manual intervention rate of the single cylinder cone crusher decreased from 30% to 5%, the number of operation and maintenance personnel decreased by 50%, and the annual labor cost savings exceeded 200000 yuan.

4. Sealed dustproof design: Suitable for harsh working conditions, extending component life

For harsh working conditions such as high dust and high humidity in mining and construction waste treatment, the single cylinder cone crusher adopts a triple sealing structure of "labyrinth seal+rubber dust ring+negative pressure dust prevention" to effectively prevent dust and water vapor from entering the interior of the equipment

Maze seal: Multi layer maze grooves are designed at the junction of the moving cone and the fixed cone to block dust from entering through air damping effect;

Rubber dust ring: made of oil resistant and wear-resistant fluororubber material, tightly adheres to the surface of the moving cone, moves synchronously with the moving cone, and has excellent dynamic sealing effect;

Negative pressure dust prevention: Install a negative pressure suction port on the top of the equipment, in conjunction with the workshop dust removal system, to maintain a slight negative pressure (-50 to -100Pa) inside the crushing chamber to prevent dust from overflowing.

This sealing design extends the service life of bearings from traditional equipment's 18-24 months to 24-36 months in mining environments with dust concentration ≥ 100mg/m ³ and dust intrusion into bearing chambers ≤ 0.1g/month, significantly reducing the frequency of bearing replacement and maintenance costs.

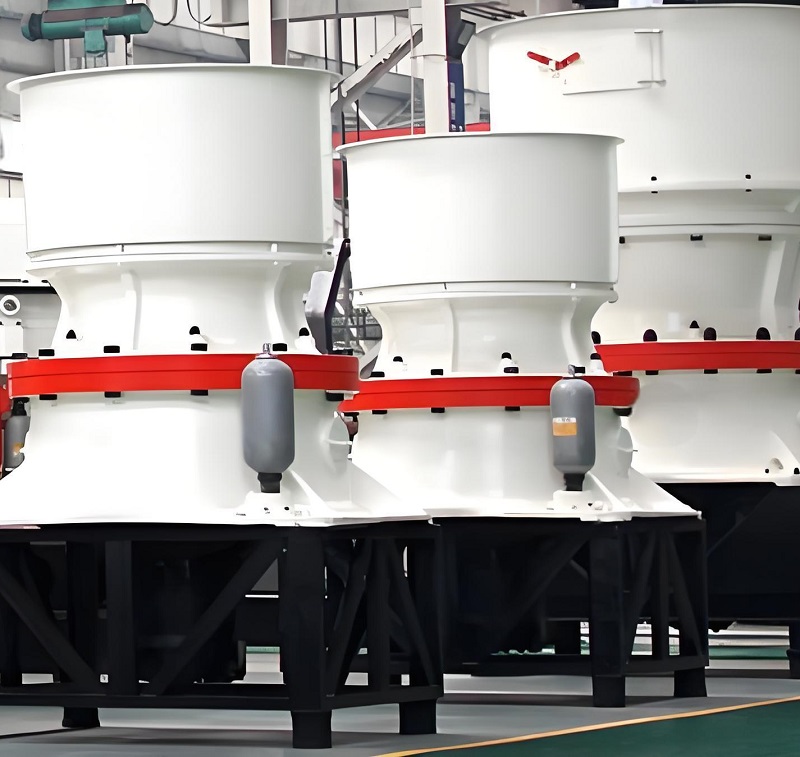

The outstanding advantages of single cylinder cone crusher: comprehensive leading in efficiency, cost, and adaptability

The advantages of a single cylinder cone crusher stem from its structural features and technological innovation. In terms of crushing efficiency, operation and maintenance costs, and adaptability to working conditions, it demonstrates unparalleled advantages over traditional multi cylinder cone crushers or jaw crushers, creating significant economic value for enterprises.

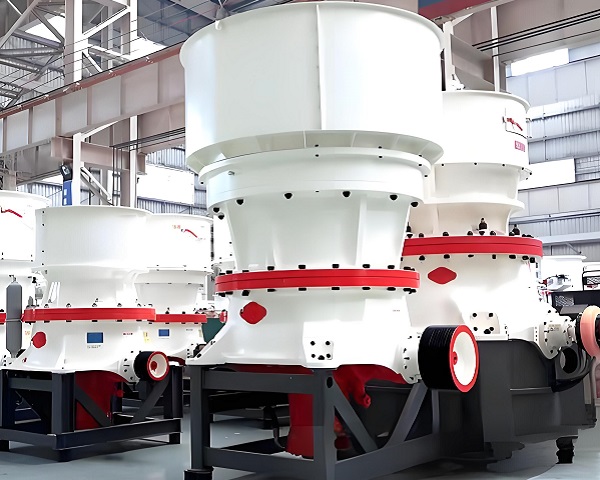

1. High crushing efficiency and large processing capacity: meeting the needs of large-scale production

The single cylinder cone crusher has significant advantages in crushing efficiency and processing capacity with the combination of optimized cavity and efficient hydraulic drive

Processing capacity: A single device can process up to 50-500 tons per hour, which is 1.5-2 times that of jaw crushers of the same specifications (30-300 tons/hour); The processing capacity of large single cylinder cone crushers (such as the CSB series) can even exceed 1000 tons/hour, making them suitable for large-scale mining or construction waste resource utilization projects;

Crushing efficiency: The principle of laminated crushing allows materials to be subjected to multi-directional compression in the crushing chamber, resulting in sufficient crushing and a yield rate (the proportion of materials that meet particle size requirements) of over 95%, which is 5-10 percentage points higher than that of jaw crushers (85% -90%); According to data from a granite quarry, after adopting a single cylinder cone crusher, the daily crushing capacity of granite increased from 800 tons to 1200 tons, the production line capacity increased by 50%, and the annual new production value exceeded 3 million yuan.

At the same time, the equipment can operate continuously for 24 hours without the need for forced shutdown cooling, with an annual effective working time of over 7000 hours, which is 8% -15% longer than traditional equipment (6000-6500 hours), further improving production efficiency.

2. Low operation and maintenance costs, excellent overall economic efficiency: reducing the burden of enterprise operations

The single cylinder cone crusher significantly reduces operation and maintenance costs through "simplified structure+durable components+intelligent operation and maintenance", with outstanding comprehensive economy:

Low maintenance cost: There are few structural components, and the moving parts are only the moving cone, hydraulic cylinder, and motor. Daily maintenance only requires checking lubrication, seals, and lining plates. The monthly maintenance time is only 2-4 hours, which is one-third of the multi cylinder cone crusher (8-12 hours); The replacement cycle of lining plates is long, and there is no need to disassemble complex components during replacement. The time for replacing a single lining plate has been reduced from 8 hours in traditional equipment to 2 hours, and maintenance labor costs have been reduced by 75%;

Low energy consumption cost: adopting high-efficiency energy-saving motors (efficiency ≥ 95%) and optimized transmission structure, the energy consumption per unit processing capacity is only 8-12 kWh/ton, and many cylinder cone crushers (12-18 kWh/ton) save 30% -35% energy; According to data from a construction waste treatment project, a single cylinder cone crusher can process 200 tons of construction waste per day, with a daily electricity consumption of 1600kWh, saving over 100000 yuan in electricity costs compared to traditional multi cylinder equipment (2400kWh);

Low spare parts cost: Core spare parts (lining plates, bearings, seals) have strong universality, and the procurement cost is 20% -30% lower than that of cylinder equipment. In addition, there is less inventory demand for spare parts (only 3-5 key spare parts need to be reserved), and the cost of capital occupation is reduced.

3. Strong adaptability to working conditions: covering diverse materials and scenarios

The single cylinder cone crusher, with its adjustable cavity, excellent sealing, and reliable overload protection, is suitable for various crushing scenarios from mines to buildings, and its adaptability to material characteristics far exceeds that of traditional equipment

Material hardness adaptation: It can handle materials with Mohs hardness levels 3-10, from soft limestone (Mohs 3) to hard basalt (Mohs 8), and even high hardness iron ore (Mohs 6-7), all of which can be stably crushed without the need to replace core components;

Material humidity adaptation: The triple sealing design enables the equipment to handle wet and sticky materials with a moisture content of ≤ 20% (such as wet coal, clay mixed ore), without material adhesion and blockage problems; After being applied in a coal washing plant, wet coal gangue with a moisture content of 18% was successfully crushed, and the crushing efficiency remained stable at over 90%, solving the pain point of traditional equipment's difficulty in crushing wet materials;

Flexible scene adaptation: The equipment is small in size and light in weight, and can be adapted to fixed production lines (such as mine crushing stations) and mobile crushing stations (such as on-site disposal of construction waste); The mobile single cylinder cone crusher can be flexibly transferred with the construction site, without the need for complex infrastructure. The production cycle has been shortened from 3 months for traditional fixed equipment to 15 days, greatly improving project response speed.

4. Excellent product quality and high added value: enhancing material utilization value

The laminated crushing principle and precise cavity design of the single cylinder cone crusher ensure excellent product quality and significantly increase added value after crushing:

Uniform particle size: The product particle size deviation is ≤± 2mm, with a pass rate of over 95%, far exceeding the standard of "deviation ≤± 5mm" for building aggregates. It can be directly used in high-end scenarios such as high-quality concrete and asphalt pavement, and the product price is 15% -20% higher than ordinary aggregates;

Excellent particle shape: The laminated crushing makes the material particle shape "cubic", with a needle like content of ≤ 10%, far below the industry standard (≤ 15%). In projects with strict requirements for aggregate particle shape such as highways and high-speed railways, it can directly replace natural aggregates and reduce project costs;

Low impurity content: The sealed dust-proof design prevents dust from mixing into the finished product during the crushing process. The product has a dust content of ≤ 0.5% and does not require additional cleaning, directly meeting downstream production needs; After being applied in a certain building materials factory, the purity of recycled aggregates increased from 88% to 98%, successfully supplying pre mixed concrete enterprises. The selling price per ton increased by 30 yuan, and the annual added revenue exceeded 500000 yuan.

The single cylinder cone crusher is characterized by "single cylinder hydraulic drive, integrated crushing chamber, intelligent control, and triple sealing" as its core features. It exhibits outstanding advantages in crushing efficiency, operation and maintenance costs, adaptability to working conditions, and product quality, completely solving the pain points of traditional crushing equipment such as "complex structure, low efficiency, expensive operation and maintenance, and poor adaptability". Whether it is the fine crushing operation of large-scale mines, the processing of recycled aggregates from construction waste resources, or mobile on-site crushing scenarios, single cylinder cone crushers can reduce operating costs and increase product added value for enterprises with their "high efficiency, economy, and flexibility" characteristics, becoming the preferred equipment in the field of medium hard material crushing. With the deepening of intelligent and green manufacturing technology, single cylinder cone crushers will further upgrade towards "fully autonomous operation, zero emissions, and low noise", providing core support for cost reduction and efficiency improvement in various industries' crushing operations.
