Cone crushers, core equipment for processing medium-to-high-hardness materials (such as granite, basalt, and iron ore), are widely used in mining, building materials, metallurgy, and other fields. Their selection and procurement directly impact production line capacity, finished product quality, and long-term operating costs. Blindly selecting a crusher can easily lead to problems like "a big horse pulling a small cart" (wasted capacity) or "a small horse pulling a large cart" (equipment overload and damage). This article provides a 2,000-word detailed guide covering four dimensions: "demand analysis → equipment selection → manufacturer screening → procurement implementation" to help companies avoid procurement pitfalls and select a highly adaptable and cost-effective cone crusher.

Pre-selection: Clarify three core requirements to lay the foundation for selection.

The essence of selection is "matching needs." Accurately analyzing material characteristics, production capacity targets, and finished product requirements is crucial to avoiding subsequent incompatibility between equipment and operating conditions.

1. Material Characteristics: Key to Determining Equipment Core Configuration

Cone crushers are highly adaptable to material hardness, moisture content, and particle size. The following parameters should be analyzed specifically:

Material Hardness: With compressive strength as the core indicator, cone crushers are suitable for medium-to-high-hardness materials with a compressive strength of 100-300 MPa (e.g., limestone 100-150 MPa, granite 180-250 MPa, and basalt 200-300 MPa). For materials with a hardness less than 100 MPa (e.g., shale), using a cone crusher can lead to overcrushing and increased energy consumption. For materials with a hardness greater than 300 MPa (e.g., diamond ore), a specialized machine designed for ultra-hard materials (e.g., a multi-cylinder hydraulic cone crusher) is required; standard models can cause rapid wear of the liner.

Material Moisture Content: Keep it below 8%. If the moisture content exceeds 12%, the material will adhere to the crushing chamber wall, causing blockage. In this case, you should choose a model with an anti-adhesion liner (such as a polyurethane-coated liner) or a crushing chamber heating device. You should also equip the feed inlet with a pre-screening device (such as a vibrating screen) to pre-screen materials with excessive moisture.

Feed and discharge particle size: You need to clearly define the maximum raw ore particle size and the required finished product particle size. For example, if the raw ore particle size is ≤300mm and the finished product particle size is 5-20mm, you should choose a two-stage cone crusher with "secondary crushing + tertiary crushing" (e.g., a standard cone crusher for coarse crushing to 50-80mm and a short-head cone crusher for tertiary crushing to 5-20mm). If the raw ore particle size is ≤100mm and the finished product particle size is 5-15mm, a single short-head cone crusher can meet the requirements.

2. Capacity requirements: Matching equipment model with production line scale

Capacity should be calculated based on both actual hourly throughput and annual operating time. Avoid selecting a model based solely on theoretical capacity (theoretical capacity is often 15%-20% higher than actual capacity). Small- to medium-sized production capacity (50-200 tons/hour): Suitable for small mines and building materials plants. Recommended options include single-cylinder hydraulic cone crushers (such as the CS series), models like the CS-240 (50-80 tons/hour) and CS-300 (80-120 tons/hour). These crushers have a small footprint (approximately 15-20 square meters) and low investment costs (approximately 500,000-1.5 million yuan).

Medium- to large-sized production capacity (200-500 tons/hour): Suitable for medium-sized infrastructure projects and large cement plants. Recommended options include multi-cylinder hydraulic cone crushers (such as the HPT series), models like the HPT-300 (200-280 tons/hour) and HPT-500 (350-500 tons/hour). These crushers utilize a "laminated crushing" principle, resulting in stable production capacity and uniform finished product particle size. Large-scale production capacity (over 500 tons/hour): Suitable for large-scale mining and metallurgical enterprises. A combined gyratory cone crusher and multi-cylinder cone crusher process is recommended. For example, a gyratory crusher for primary crushing (capacity of 800-1200 tons/hour) is used, followed by two or three multi-cylinder cone crushers for fine crushing to ensure both production capacity and particle size meet standards.

3. Product Requirements: Impacts Crushing Chamber Type and Classification Configuration

Different industries have significantly different requirements for finished product particle size, gradation, and particle shape, requiring targeted selection:

Construction aggregates (such as concrete aggregates): Require a continuous particle size distribution (e.g., 40% each of 5-10mm and 10-20mm) and a flake content of less than 5%. A "short-head crushing chamber" (laminated crushing can reduce flakes) and a "high-frequency vibrating screen" (with a classification accuracy of over 95%) are recommended. Mineral processing: A uniform particle size of finished product (e.g., ≥90% 20-30mm) is required to facilitate subsequent grinding. A medium-sized crushing chamber is recommended, along with a ore washer to remove dust and impurities from the finished product.

Road base materials: A certain amount of flakes (<10%) is permitted. A standard crushing chamber can be selected to reduce equipment investment costs. If particle shape improvement is required, a vertical impact crusher can be added for reshaping.

 Equipment Selection: Focus on Four Core Configurations to Ensure Performance Compatibility

After clarifying the requirements, the equipment's crushing chamber type, drive system, lubrication system, and automation configuration must be carefully selected. These factors directly impact the equipment's operational stability and maintenance costs.

1. Crushing Chamber Type: Precisely Matched by Crushing Stage

Cone crusher crushing chambers are categorized as standard (coarse crushing), medium (intermediate crushing), and short-head (fine crushing). The crushing chamber selection depends on the production line process stage:

Standard: Features a deep chamber and a large feed opening (e.g., a feed opening diameter of 200-400mm). It is suitable for coarse crushing, handling large ore particles (100-300mm), and a discharge size of 50-100mm. It is commonly used for secondary crushing after coarse crushing in mines.

Medium: Features a medium-sized chamber, a feed opening of 100-200mm, and a discharge size of 20-50mm. It is suitable for the medium crushing stage, bridging coarse and fine crushing, and balancing production capacity and particle size.

Short-head: Features a shallow chamber and a large crushing area, a feed opening of 50-100mm, and a discharge size of 5-20mm. It is suitable for fine crushing, producing a uniform finished product with low flake content. It is the core model for construction aggregate production.

2. Drive and Adjustment System: Balancing Efficiency and Safety

Currently, the mainstream types are divided into "spring-type" and "hydraulic" types, with significant differences between the two:

Spring-type cone crushers: Utilizing spring overload protection, they offer a simple structure and low cost (20%-30% lower than hydraulic types). However, adjusting the crushing chamber gap requires manual operation, which is time-consuming (approximately 2-4 hours), and the overload protection is insensitive (prone to component damage due to stuck foreign objects). They are suitable for applications with low impurities and low production capacity requirements (such as small mines).

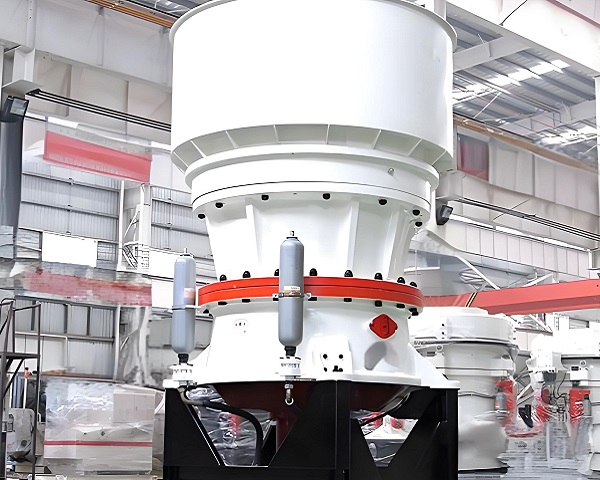

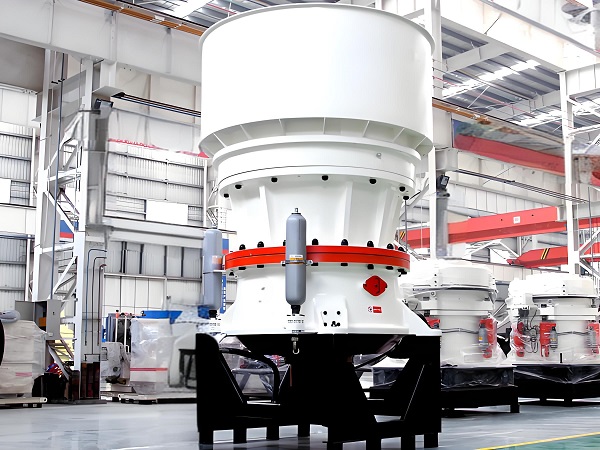

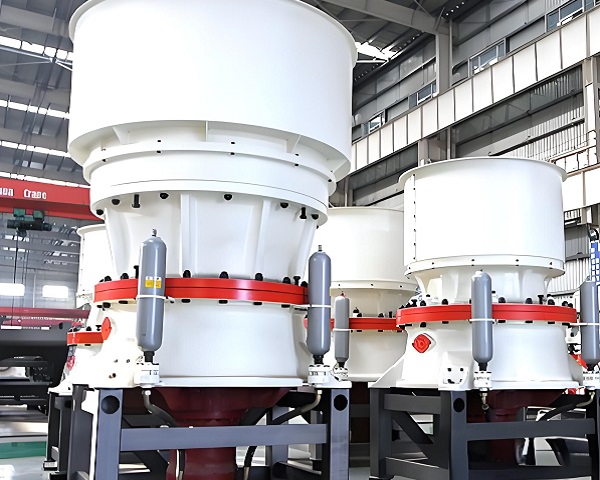

Hydraulic cone crushers: Available in single-cylinder and multi-cylinder versions, they utilize hydraulic adjustment and overload protection. Gap adjustment takes only 10-30 minutes, and they automatically retract the cone to remove foreign objects in the event of an overload, providing increased safety. Single-cylinder hydraulic crushers are compact and easy to maintain; multi-cylinder hydraulic crushers (e.g., 4-6 cylinders) deliver even force distribution and high crushing efficiency (15%-20% higher than single-cylinder versions). They are suitable for medium- to large-scale production lines and applications with high impurities (such as construction waste processing).

3. Lubrication System: Key to Avoiding Overheating and Seizure

The eccentric shaft sleeve and bearings of a cone crusher are subject to long-term high-load operation, requiring a reliable lubrication system:

Lubrication Method: Forced lubrication (thin oil lubrication) is preferred. This method uses an oil pump to force lubricant to all components, ensuring uniform lubrication and effective heat dissipation (the oil temperature can be controlled between 30-50°C). This extends component life by 2-3 times compared to grease lubrication (which is prone to grease caking and lubrication failure).

Oil Quality: Use 32# or 46# anti-wear hydraulic oil. If the ambient temperature is below -10°C, choose a low-temperature anti-wear oil (such as 46# low-temperature hydraulic oil) to prevent oil solidification. If the temperature is above 40°C, an oil cooler (such as water or air cooling) is required to prevent lubrication failure due to excessive oil temperature.

4. Automation: Reduces Labor Costs and Improves Stability

For medium- to large-scale production lines, we recommend choosing models with automated features, which can reduce manual intervention by 70%.

Intelligent Control System: Equipped with a PLC control system, it monitors oil temperature, oil pressure, current, and crushing chamber liquid level in real time, automatically alarming in the event of an anomaly (e.g., shutting down when the oil temperature exceeds 60°C). Some high-end models support remote control (e.g., via a mobile app), facilitating unattended operation.

Automatic Cavity Clearing Device: When the crushing chamber becomes clogged, the hydraulic system automatically retracts the cone, and an in-chamber spray device removes adhering material, eliminating the need for manual cleaning (traditional manual cleaning takes 4-8 hours, while automatic cleaning takes only 30-60 minutes).

Manufacturer Selection: Criteria for Qualification, Capability, and After-Sales Service

There are numerous cone crusher manufacturers on the market. Avoid small-scale, workshop-style businesses and focus on the following aspects to ensure equipment quality and after-sales service:

1. Manufacturer Qualifications: Eliminate the risk of "three-no" products

Core Qualifications: Must possess a "Mining Machinery Production License" and ISO9001 quality certification. For export, CE certification and GOST certification (Russia) are also required. Equipment from unqualified manufacturers is prone to safety hazards (e.g., substandard frame welding and cracking during operation).

Industry Experience: Prefer manufacturers with more than 10 years of experience. These manufacturers have mature production processes (e.g., integral forging versus welded frame: integral forging offers 50% greater impact resistance) and a wealth of case studies (e.g., supplying large-scale mines and infrastructure projects).

2. On-site Inspection: Verify the manufacturer's capabilities and equipment quality.

Production workshop inspection: Focus on core component production capabilities, such as whether the company has its own forging shop (crushing cones and eccentric bushings are forged, not cast; forged components increase strength by 30%), and heat treatment shop (liners undergo a "quenching and tempering" process to achieve a hardness of HRC55 or higher). Relying on outsourced core components can make quality control difficult.

User site inspection: Request the manufacturer to provide user case studies using the same material in the same region. Observe the equipment's operating status (e.g., whether noise levels are <85 decibels and whether the finished product particle size is uniform). Inquire about the user's mean time between failures (MTBF) (high-quality equipment has an MTBF >8,000 hours, while low-quality equipment only has an MTBF of 3,000-5,000 hours) and the replacement cycle for wearing parts (e.g., whether the high-manganese steel liner has a lifespan of 3,000-5,000 hours).

3. After-Sales Service: Ensure Long-Term Stable Equipment Operation

The after-sales service cost of a cone crusher accounts for 20%-30% of the equipment's lifecycle cost. Key areas to consider include:

Parts Supply: The manufacturer must have 3-5 parts warehouses nationwide, ensuring delivery times for consumable parts (liners, seals, and lubricants) of less than 72 hours to avoid downtime due to parts shortages (each day of downtime can result in tens of thousands of yuan in losses).

On-Site Service: The manufacturer must guarantee a 24-hour response time and 48-hour on-site service. Partner service locations are essential, especially in remote areas. Regular inspections should also be provided (e.g., on-site visits every three months to check equipment accuracy and lubrication status).

Training: After purchase, operator training (e.g., startup procedures, troubleshooting) and maintenance training (e.g., liner replacement, hydraulic system repair) should be provided to ensure the company can independently handle common issues.

Procurement Implementation: Avoid Contract Traps and Protect Your Rights

When signing a contract, it's important to clearly define all terms to avoid future disputes. Pay special attention to the following:

1. Equipment Parameters and Configuration List

The contract should clearly specify the equipment model, processing capacity, crushing chamber type, motor power, and core component materials. For example, "Model HPT-300 multi-cylinder hydraulic cone crusher, processing capacity 280-350 tons/hour (limestone), crushing chamber type short head, motor power 160kW, crushing cone material ZG35CrMo, liner material ZGMn13" to prevent manufacturers from substituting inferior products (e.g., substituting ordinary steel for alloy steel).

2. Acceptance Criteria and Warranty Period

Acceptance Criteria: Clearly define acceptance criteria for both "no-load test runs" and "loaded test runs," such as vibration displacement <0.1mm during the no-load test runs, a finished product particle size pass rate ≥95% during the loaded test runs, and a processing capacity that meets the standard (±5% deviation allowed). Failure to meet acceptance criteria will require unconditional rectification by the manufacturer. Warranty Period: Core components (crushing cone, eccentric bushing, motor) have a warranty period of ≥ 18 months. Wear parts (liner, seal) have a warranty period of ≥ 3 months. If any quality defects occur during the warranty period, the manufacturer will replace the component free of charge and cover the repair costs.

3. Payment and Delivery Terms

Payment Method: We recommend a "3-6-1" payment ratio (30% upfront, 60% upon factory acceptance, and 10% upon expiration of the warranty period). Avoid full upfront payment (some manufacturers may delay delivery or reduce specifications after receiving payment).

Delivery Period: Clearly specify "production period + installation and commissioning period." For example, a production period of 45 days, an installation and commissioning period of 15 days, and a total period of 60 days. Late delivery will incur a penalty of 0.5% of the total contract price per day.

Selection Mistakes: Avoid Common Pitfalls

Focusing Only on Price and Not Quality: Some companies choose low-priced equipment (over 20% below the market average). However, this can lead to problems later, such as "liner replacement every month" and "frequent machine jams and downtime," which in turn increase costs. We recommend choosing equipment with a "high cost-effectiveness" (price range above the market average, with guaranteed manufacturer qualifications and after-sales service).

Blindly Pursuing "High Capacity": If the actual production capacity required is 100 tons/hour, but a 200 tons/hour machine is selected, this will result in "underloaded equipment" (load rate <50%), increasing power consumption per unit of product by 30%-50%, making long-term operation uneconomical.

Ignoring "Process Matching": Focusing solely on the cone crusher itself without considering its integration with upstream and downstream equipment (feeders, vibrating screens, and conveyors). If the feeder's capacity is lower than the cone crusher's, the equipment will not be fully utilized. Insufficient conveyor bandwidth will cause finished product accumulation, impacting production capacity.

The selection and procurement of cone crushers should follow the principle of "demand analysis → equipment matching → manufacturer screening → contract guarantee." While accurately matching material, production capacity, and finished product requirements, it's also crucial to prioritize the manufacturer's strength and after-sales service to avoid blind decisions driven by short-term profits. Scientific selection can improve equipment efficiency by 20%-30% and reduce maintenance costs by 15%-20%, creating long-term value for the business.
