In industrial sectors such as mineral processing and building aggregate production, high-efficiency crushing equipment is crucial for ensuring production. Traditional crushing equipment often suffers from low efficiency and poor particle size control, making it difficult to meet demands. Cone crushers, with their superior performance, have become core equipment in industrial crushing, playing a vital role in multiple industries. This article has already analyzed its functions and characteristics; this preface aims to help readers quickly grasp its importance in industrial production.

A. The Core Function of Cone Crusher: Facilitating Crushing Processing in Multiple Industries

1. Ore Crushing: Providing Qualified Raw Materials for Mineral Processing

In the mining industry, cone crushers are key equipment for coarse, medium, and fine crushing of ores. After mining, the particle size of raw ore is usually large (up to 1-2 meters), requiring crushing to meet subsequent beneficiation or smelting requirements. Taking metal ores as an example, after iron ore is crushed by a cone crusher, the particle size can be reduced from hundreds of millimeters to 20-50 millimeters, facilitating grinding and separation in a ball mill. In the crushing process of non-ferrous metal ores, it can precisely control the crushing particle size, reduce over-crushing of ore, and improve metal recovery rate. After introducing a cone crusher, a copper mine project saw a 30% increase in ore crushing efficiency and a 4% increase in metal recovery rate in subsequent beneficiation stages, resulting in an annual increase in output value exceeding ten million yuan. In the non-metallic mineral sector, limestone and granite, after being crushed, can be used as building material or chemical raw materials. For example, limestone crushing for cement production increases the particle size compliance rate from 80% with traditional equipment to 95%, ensuring stable cement raw material quality.

2. Construction Aggregate Production: Creating High-Quality Sand and Gravel Raw Materials

With the continuous advancement of infrastructure construction, the demand for high-quality construction aggregates has surged. Cone crushers, with their precise particle size control capabilities, have become core equipment in construction aggregate production. In sand and gravel production lines, they can crush large rocks (such as basalt and river pebbles) into aggregates of different specifications, ranging from 5 to 31.5 mm, meeting the needs of various projects such as concrete and asphalt pavement. Compared to traditional jaw crushers, cone crushers produce aggregates with more uniform particle shape and lower needle-like and flaky content (controllable below 5%), significantly improving concrete strength. After adopting cone crushers, a large aggregate plant saw a significant increase in the market acceptance of its high-quality aggregates, with product prices 15% higher than ordinary aggregates, resulting in an annual profit increase of over 20 million yuan. Simultaneously, it can process high-hardness rocks, exhibiting excellent crushing effects on granite and quartzite with a Mohs hardness of 7 or higher, thus expanding the sources of raw materials for construction aggregates.

3. Industrial Waste Recycling: Promoting Resource Recycling

In the field of industrial solid waste treatment, cone crushers can achieve resource recycling of waste residues. Concrete blocks and reinforced concrete waste generated from building demolition can be crushed to separate recycled aggregates for use in the production of recycled concrete, permeable bricks, and other building materials. Steel slag and mineral slag generated from the metallurgical industry can be crushed and used as cement admixtures or roadbed fillers. In a construction waste treatment project, cone crushers crushed construction waste into recycled aggregates, achieving a recycling rate of over 90%, reducing construction waste landfill volume by over 500,000 tons annually and saving approximately 30 mu of land resources. In chemical waste treatment, cone crushers can break down lumpy waste, facilitating subsequent harmless treatment or resource extraction. For example, when treating phosphorus chemical waste, the crushed waste reacts more easily with the extractant, improving phosphorus recovery.

4. Supporting Large-Scale Projects: Ensuring Construction Progress and Quality

In large-scale projects such as water conservancy projects and road and bridge construction, cone crushers are often used as on-site crushing equipment to provide timely raw material supply. In the construction of water conservancy projects, a large amount of sand and gravel aggregate is needed for concrete pouring. Deploying cone crushers on-site can reduce raw material transportation costs while ensuring the stability of aggregate supply, avoiding delays due to raw material shortages. A certain hydropower station project adopted a mobile cone crushing station to achieve on-site rock crushing, reducing aggregate transportation costs by 40%, and achieving a crushing capacity of 200 tons/hour, meeting the needs of high-intensity construction. In road construction, the aggregate crushed by cone crushers is used for pavement base layer construction. Its uniform particle shape and stable gradation improve the pavement's load-bearing capacity and extend its service life. After adopting this equipment in a highway project, the pass rate for pavement base layer construction quality acceptance reached 100%.

B. Significant Features of Cone Crusher: Supporting High-Efficiency and Stable Operation

1. Precise Structure, High Crushing Efficiency

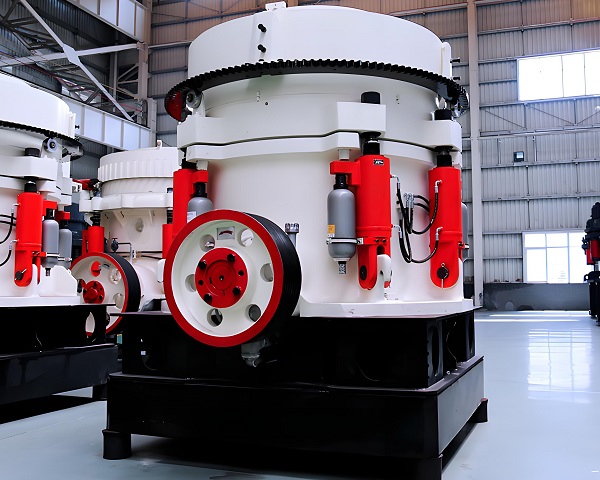

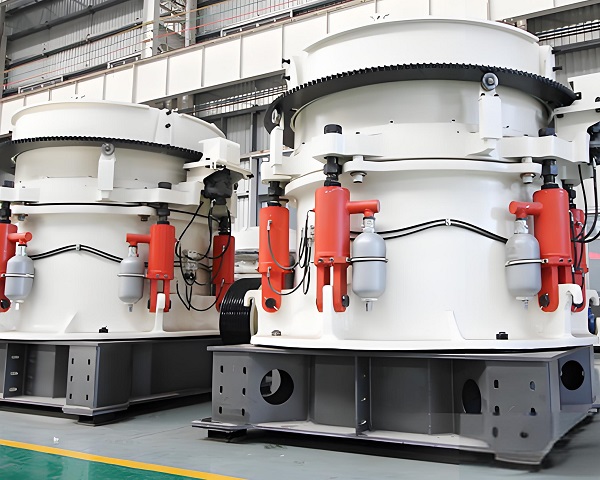

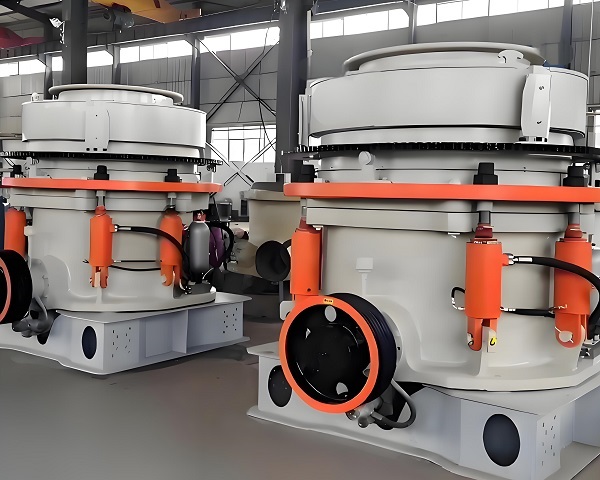

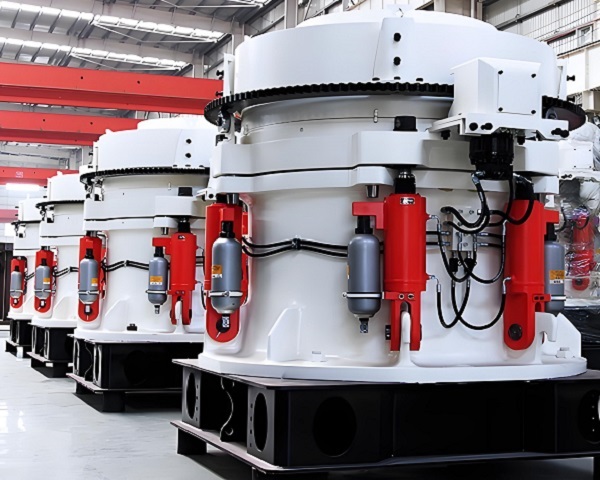

The cone crusher adopts the "material layer crushing" principle, crushing materials through the squeezing and bending action between the moving and fixed cones. Compared to traditional impact crushers, the crushing efficiency is increased by 25%-40%. Its core component, the crushing chamber, has diverse designs, allowing selection of standard, medium, and short-head chambers according to material characteristics and crushing requirements. For example, the standard chamber is suitable for coarse crushing, while the short-head chamber is suitable for fine crushing. Simultaneously, the equipment is equipped with a hydraulic adjustment device, which can quickly adjust the discharge opening size to achieve precise control of the crushed particle size. The discharge opening adjustment range varies from 5 mm to 100 mm to meet different process requirements. A metal mine utilizes a multi-cylinder hydraulic cone crusher with an optimized crushing chamber design, increasing processing capacity by 35% compared to traditional equipment, and achieving a 98% pass rate for crushed product particle size.

2. Wear-resistant and durable with a long service life: Key components of the cone crusher are made of high-strength wear-resistant materials. The moving and fixed cone liners are made of high-manganese steel or high-chromium cast iron. The high-chromium cast iron liner has a hardness exceeding HRC60, offering 1.5-2 times the wear resistance of ordinary high-manganese steel, and a service life of 8000-12000 hours. The main shaft is forged from high-quality alloy steel, possessing high fatigue strength and capable of withstanding long-term heavy-load impacts. Imported high-precision rolling bearings are used, coupled with a thin oil lubrication system, reducing wear and extending bearing life. Furthermore, the equipment is equipped with an overload protection device. When encountering uncrushable foreign objects (such as iron blocks), the hydraulic system automatically lifts the moving cone, expelling the foreign object and resetting it to its original position, preventing equipment damage. A cone crusher at an aggregate plant has operated continuously for three years, requiring only two liner replacements. The equipment failure rate is less than 3%, significantly reducing maintenance costs.

3. Stable Operation and Low Energy Consumption: The cone crusher operates with low vibration and noise (operating noise controlled below 90 decibels). Through reasonable counterweight design and vibration damping devices, the impact on the foundation and surrounding environment is reduced, allowing operation near residential areas or in sensitive environments. It uses a high-efficiency energy-saving motor, reducing unit crushing energy consumption by 20%-30% compared to traditional jaw crushers. For example, processing 1 ton of limestone requires only 5-8 kWh. Simultaneously, over-crushing is minimal, reducing material waste and improving resource utilization. A cement plant using a cone crusher to crush limestone has an annual crushing capacity of 1 million tons, saving over 1 million yuan in electricity costs annually compared to traditional equipment. Furthermore, the crushed limestone has a uniform particle size, reducing the grinding load on the ball mill and further lowering overall production energy consumption.

4. Wide Adaptability and Convenient Operation

The cone crusher can process a variety of materials, from low-hardness limestone and gypsum to high-hardness granite and basalt, and even sticky materials such as clay ore, achieving efficient crushing. Its installation is flexible; it can be fixed in a plant or mounted on a mobile crushing station, adapting to different operating scenarios, such as mining sites and construction waste treatment sites. In terms of operation, modern cone crushers are equipped with an intelligent control system, enabling remote monitoring, fault diagnosis, and automatic adjustment. Operators can adjust crushing parameters and monitor equipment operation status in real time via a touchscreen. One mine adopted an intelligent cone crusher, achieving unattended operation, reducing the number of operators by 3, and through remote fault diagnosis, the equipment repair response time was shortened to less than 2 hours, significantly improving management efficiency.

Excellent Environmental Performance, Meeting Green Production Requirements

1. The cone crusher adopts a fully enclosed design and is equipped with a high-efficiency dust removal device. Dust emissions during the crushing process can be controlled below 10mg/m³, meeting national environmental protection standards. Some equipment employs wet dust collection or a sealed crushing chamber to further reduce dust pollution. Simultaneously, the equipment operates without wastewater discharge, and lubricating oil is recycled, preventing environmental pollution. Regarding noise control, the equipment casing is fitted with sound-absorbing cotton, along with vibration damping devices, effectively reducing noise transmission. A aggregate plant located in an environmentally sensitive area, after adopting a cone crusher, achieved compliance with dust and noise emission standards, realizing green production and avoiding production shutdowns due to environmental issues, ensuring the company's continued operation.

The cone crusher plays a crucial role in industrial crushing, supporting ore processing, aggregate production, waste recycling, and engineering projects, providing support for multiple industries. It features high efficiency, durability, low consumption, wide adaptability, and environmental friendliness, ensuring stable operation and cost reduction. Whether improving production efficiency or promoting green production, it is of great significance and is an indispensable high-quality piece of equipment in the industrial crushing field.

Author : Song Ying

Song Ying is a blog column writer. She has more than 8 years of experience in the manufacturing and service of environmental protection machinery. She has a deep understanding of the garbage screening and crushing industry and is happy to share practical industry knowledge and technology.
