Mobile jaw crusher is an efficient crushing equipment that integrates feeding, crushing, screening, conveying and other functions. With its flexible, convenient, efficient and energy-saving characteristics, it plays an important role in mining, construction, road construction and other fields.

In terms of structural design, mobile jaw crusher organically combines traditional jaw crusher with mobile frame. The mobile frame is equipped with tires or crawlers. The tire type has strong mobility and flexible transfer, which is suitable for sites with good road transportation conditions; the crawler type has strong terrain adaptability and can move freely in complex environments such as rugged mountain roads and muddy construction sites. The jaw crushing system adopts high-strength movable jaw and fixed jaw, with high-quality crushing tooth plates, which can withstand huge impact loads and perform coarse crushing operations on various types of ores and rocks.

The advantages of this equipment are very significant. First, it has strong mobility and does not require complex infrastructure and equipment disassembly and installation. It can quickly reach the work site, greatly shortening the construction preparation time; second, the integrated design reduces the connection links between equipment, improves the crushing efficiency, and reduces the material transportation cost; third, the intelligent control system realizes remote operation and real-time monitoring of the equipment, which improves the safety and stability of equipment operation.

Mobile jaw crushers have a wide range of application scenarios. In mining, it can directly perform preliminary crushing of raw ore in the mining area to reduce transportation costs; in urban construction waste treatment sites, it can quickly crush and reuse waste concrete, bricks and stones to achieve resource recycling; in the process of road construction, it can also promptly process the mined stones into the required specifications to meet the needs of engineering materials.

With the continuous advancement of technology, mobile jaw crushers are developing in the direction of intelligence, large-scale and green, and will bring more efficient and environmentally friendly crushing solutions to more industries in the future.

The mobile jaw crusher can efficiently complete the crushing operation thanks to its precise structural design and scientific work process. Overall, the working process of the mobile jaw crusher mainly covers three stages: material feeding, crushing processing and finished product output. Each link cooperates closely to achieve efficient crushing of materials.

At the beginning of work, the material is evenly and continuously fed into the crushing chamber of the jaw crusher through the feeder. The feeder can accurately control the feeding speed and amount of the material according to the subsequent crushing needs to ensure a stable and orderly crushing process. After entering the crushing chamber, the material faces a crushing "position" composed of a fixed jaw and a movable jaw. The fixed jaw is fixed on the frame, and the movable jaw swings back and forth periodically driven by the eccentric shaft. When the movable jaw approaches the fixed jaw, the space between the two gradually shrinks, and the strong extrusion force, splitting force and bending force act on the material, causing it to be crushed in continuous extrusion and collision; and when the movable jaw is away from the fixed jaw, the crushed material is discharged from the discharge port under the action of gravity.

After the material is discharged, the screening system of the mobile jaw crusher begins to work. The screen screens the crushed materials, and the materials that meet the particle size requirements pass through the screen and become finished products; the materials with larger particle size and not up to the standard are sent back to the crushing chamber by the conveyor for re-crushing until the required particle size is reached, forming a closed-loop crushing process.

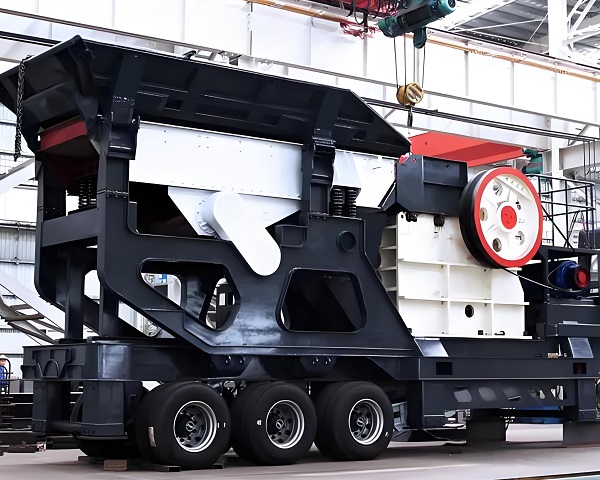

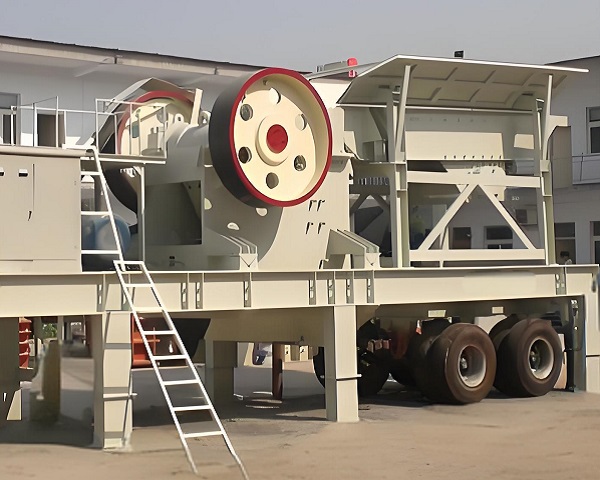

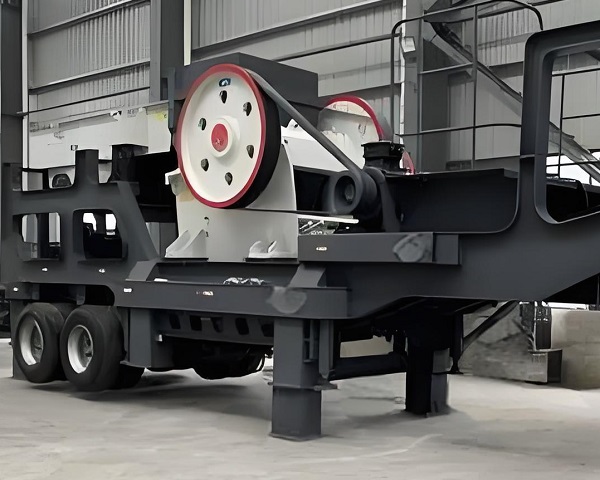

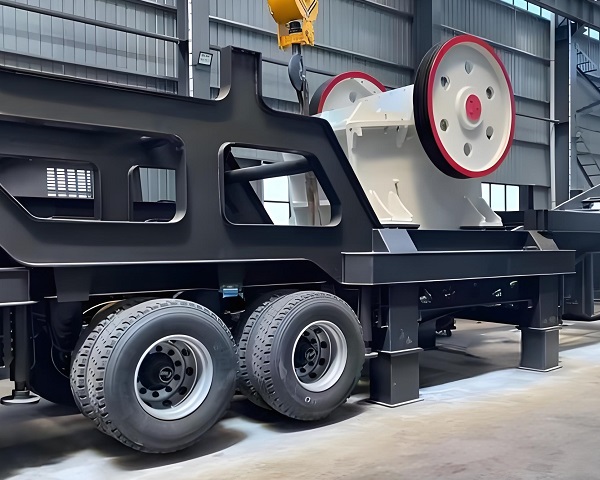

The mobile system of the mobile jaw crusher is also crucial. The tire-type mobile jaw crusher is transferred by a tractor and moves quickly on a flat road; the crawler-type mobile jaw crusher relies on hydraulically driven crawlers to move flexibly in complex terrain, allowing the equipment to quickly reach the work site and provide efficient mobility support for the entire crushing work.

With its unique design and powerful functions, the mobile jaw crusher has demonstrated unparalleled competitiveness in the fields of mining, construction waste treatment, road construction, etc. Its characteristics and advantages are mainly reflected in the following aspects.

Strong mobility is one of the most significant features of the mobile jaw crusher. It breaks the limitations of fixed operation of traditional crushing equipment and mounts the jaw crusher on a tire or crawler mobile chassis. The tire-type mobile jaw crusher is flexible in transfer and can be quickly transported to different work sites by road; the crawler-type mobile jaw crusher can easily adapt to complex terrains such as mountains and wetlands, and can move freely even in mining areas without roads, greatly improving the convenience of equipment use.

Integrated design is another core advantage of the mobile jaw crusher. The equipment integrates multiple links such as feeding, crushing, screening, and transportation into the same unit, without the need for complex site layout and equipment installation and commissioning. After arriving at the work site, it can be quickly put into work, which not only saves a lot of manpower, material resources and time costs, but also reduces the connection links between equipment, improves crushing efficiency, and ensures the continuity of the production process.

In terms of crushing performance, the mobile jaw crusher also performs well. It adopts advanced jaw crushing technology, equipped with high-strength and wear-resistant crushing chamber and movable jaw parts, which can efficiently crush materials with high hardness and large particle size, and has strong processing capacity. And the discharge particle size can be flexibly adjusted according to actual needs to meet the material standards of different projects.

The mobile jaw crusher also has the characteristics of intelligence and environmental protection. The equipment is equipped with an intelligent control system, which can realize remote operation and real-time monitoring, and can promptly detect and deal with problems in equipment operation, reducing the risk of manual operation. At the same time, through the optimization design and configuration of dust removal and noise reduction devices, dust and noise pollution are effectively reduced, the concept of green production is implemented, and the requirements of sustainable development of modern industry are met.

>1. What is a mobile jaw crusher?

A mobile jaw crusher is a type of crushing equipment mounted on a track or wheeled chassis that integrates a jaw crusher, feeding system, and conveyor into a mobile unit. It is designed for on-site crushing of hard rock and construction waste, offering flexibility and ease of transport between sites.

>2. What materials can a mobile jaw crusher process?

Mobile jaw crushers are typically used for crushing hard and abrasive materials such as granite, basalt, concrete, reinforced concrete, construction debris, and even ores like iron or copper. They are ideal for primary crushing tasks.

>3. How does a mobile jaw crusher work?

It works by feeding material into the jaw chamber, where a moving jaw compresses the rock against a fixed jaw. This action breaks down the material into smaller sizes. Crushed material then exits through the adjustable discharge opening onto a conveyor belt.

>4. What are the advantages of using a mobile jaw crusher?

The key advantages include mobility, quick setup, reduced transportation costs, and the ability to work in remote or urban job sites. They also offer high throughput and flexibility in adjusting output size.

>5. What is the typical output capacity of a mobile jaw crusher?

Output capacity varies by model and manufacturer, but most modern units can produce between 150 to 450 tons per hour, depending on the feed material and crusher settings.

>6. How is the output size adjusted on a mobile jaw crusher?

The output size is controlled by adjusting the closed side setting (CSS), which is the distance between the fixed and moving jaw. Many units allow for hydraulic or mechanical adjustment to control final material size.

>7. What type of engines do mobile jaw crushers use?

They typically use diesel engines from reputable manufacturers like CAT, Volvo, or Cummins. Some newer models also offer hybrid or electric drive systems for better fuel efficiency and lower emissions.

>8. What kind of maintenance does a mobile jaw crusher require?

Regular maintenance includes checking jaw wear, tightening bolts, inspecting belts and hydraulics, and replacing worn parts. Many units now have automated lubrication systems and onboard diagnostics to simplify upkeep.

>9. Is it suitable for recycling applications?

Yes, mobile jaw crushers are highly suitable for recycling concrete, asphalt, and demolition waste. Their ability to crush on-site reduces hauling costs and produces reusable aggregates for new construction.

>10. What safety features are typically included?

Modern mobile jaw crushers include features like emergency stop buttons, remote control operation, automatic overload protection, safety guards, and intelligent control systems to ensure safe and efficient operation.
